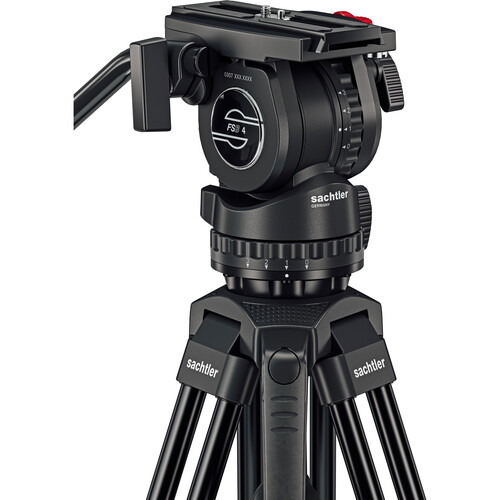

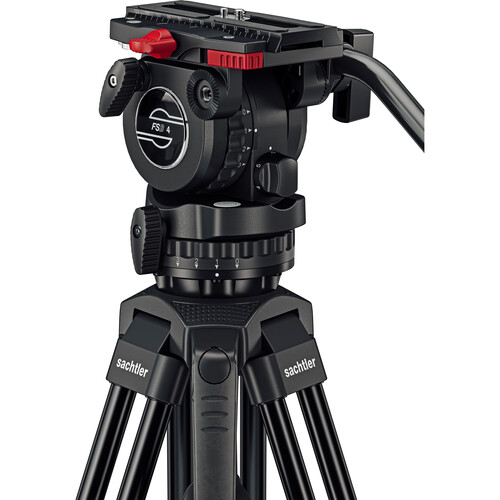

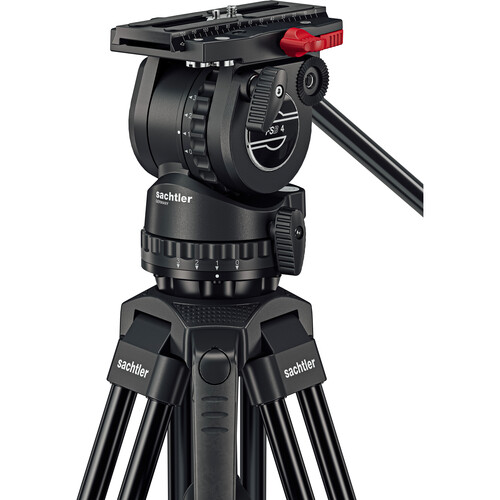

Sachtler FSB 4 Fluid Head Specs
Camera Plate
Camera Plate Features |
Quick Release, Sliding Balance Plate |
Camera Plate Type |
Sideload Plate S |
Tripod Platform
Base Mount |
75 mm Half Ball |
Pan & Tilt
Drag Control |
Tilt: 3-Step |
Vertical Tilt |
+90° to -70° |
Panning Range |
360° |
Independent Pan Lock |
Yes |
Independent Tilt Lock |
Yes |
Physical
Load Capacity |
8.8 lb / 4 kg |
Counter Balance |
Incremental 3-Step |
Bubble Level |
1 |
Operating Temperature |
-40 to 140°F / -40 to 60°C |
Weight |
5.3 lb / 2.4 kg |
Packaging Info
Package Weight |
8 lb |
Box Dimensions (LxWxH) |
18.1 x 10 x 8.4" |
Sachtler 75/2 Aluminum Tripod for 75mm Fluid Heads Specs
General
Head Mount Type |
75 mm Bowl |
Load Capacity |
44 lb / 19.96 kg |
Maximum Working Height |
61.8" / 156.97 cm (with Spreader) |
Minimum Working Height |
16.56" / 42.06 cm (with Spreader) |
Folded Length |
27.3" / 69.34 cm |
Materials |
Aluminum |
Weight |
5.28 lb / 2.39 kg (Without Spreader) |
Legs
Leg Lock Type |
Rotating Locking Lever |
Independent Leg Spread |
Yes |
Leg Sections |
3 |
Feet Features |
Dual Spiked |
Spreader |
Mid-Level, Ground (Not Included) |
Packaging Info
Package Weight |
6.255 lb |
Box Dimensions (LxWxH) |
30.7 x 7.3 x 7" |
Sachtler Spreader SP 75 Ground Tripod Spreader Specs
Payload |
88.2 lb / 40 kg |
Construction |
Plastic
Rubber |
Type |
On-Ground |
Adjustable |
Yes |
Minimum Length |
13.0" / 33.0 cm |
Maximum Length |
22.8" / 57.9 cm |
Weight |
1.3 lb / 589.7 g |
Packaging Info
Package Weight |
1.655 lb |
Box Dimensions (LxWxH) |
14.8 x 4.95 x 4.55" |
