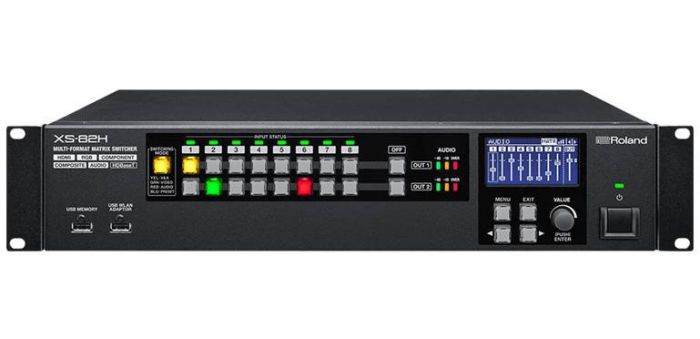

Video

Processing

4:4:4 (Y/Pb/Pr), 10-bit

Input Connectors

HDMI : Type A (19 pin) x 8 (Input 1 to 8) *HDCP supported
RGB/Component/S-video/Composite : HD DB-15 type x 8 (Input 1 to 8)

Output Connectors

HDMI : Type A (19 pin) x 2 (Output 1 to 2)
HDBaseT : RJ-45 x 2 (Output 1 to 2)
*HDCP supported

Input/Output Level and Impedance

RGB/Component
Level : 1.0Vp-p (luminance), 0.286Vp-p (chroma, NTSC), 0.3Vp-p (chroma, PAL)
Impedance : 75 ohms

Composite/S-video
Level : 1.0Vp-p (luminance), 0.286Vp-p (chroma, NTSC), 0.3Vp-p (chroma, PAL)
Impedance : 75 ohms

Input Supported Formats

HDMI : up to 1080p/59.94, up to 1920x1200/60
Component : up to 1080p/59.94
RGB : up to 1920x1200/60 *Reduced Blanking
Composite : 480i/59.94, 576i/50
S-video 480i/59.94, 576i/50
Still Image: Windows® Bitmap File (.bmp)
* Maximum 1920 x 1200 pixels, 24 bit per pixel, uncompressed

Output Supported Formats

HDMI/HDBaseT: 480/59.94i, 576/50i, 480/59.94p, 576/50p, 720/59.94p, 720/50p, 1080/59.94i, 1080/50i, 1080/59.94p, 1080/50p, 640 x 480/60 Hz, 800 x 600/60 Hz, 1024 x 768/60 Hz, 1280 x 768/60 Hz, 1280 x 1024/60 Hz, 1366 x 768/60 Hz, 1600 x 1200/60 Hz, 1920 x 1200/60 Hz
* The output refresh rates of 640 x 480–1366 x 768 are 75 Hz when the unit’s frame rate setting is 50 Hz.
* Conforms to VESA DMT Version 1.0 Revision 11.
* 1920 x 1200/60 Hz: Reduced blanking

Effects

Transition : Cut
Composition : PinP
Others : Vertically flip, Horizontally flip, Rotated 90 degrees

Audio

Audio Processing

Sampling Rate : 24-bit/48 kHz

Input Connectors

Digital : HDMI Type A (19 pin) x 8
Analog : 5 pin terminal block connector x 8

Output Connectors

Digital : HDMI Type A (19 pin) x 2
Analog : 5 pin terminal block connector x 2

Input Level and Impedance

Ch 1 to 2 : -60 to +4dBu (Maximum: +22 dBu), 10k ohms (Gain 0 to 23 dBu), 5k ohms (Gain 24 to 64 dBu)
Ch 3 to 8 : +4dBu (Maximum: +22 dBu), 8.5k ohms

Output Level and Impedance

Ch 1 to 4 : +4dBu (Maximum: +22 dBu), 600 ohms

Audio Formats

HDMI : Linear PCM, 24bit, 48kHz, 8ch

Audio Effects

Input : High-pass filter, 4-band equalizer, Gate/Expander, Compressor
Output : 4-band equalizer, Gate/Compressor, Delay

Others connectors

RS-232C : D-Sub 9 pin type x 1
LAN : RJ-45 x 1
USB : A Type x 2 for USB memory, for WNA-1100RL

Display

2 color LCD 128 x 64 dots

Others

Power Supply : AC 115 V, AC 117 V, AC 220 V, AC 230 V, AC 240 V (50/60 Hz)
Power Consumption : 50w
Accessories : Power Cord, Captive Screw Connectors, Rubber Foots, Owner’s Manual

Size and Weight

Width

481 mm
18-15/16 inches

Depth

334 mm
13-3/16 inches

Height

88 mm
3-1/2 inches

Weight

5.3 kg
11 lbs. 11 oz.
