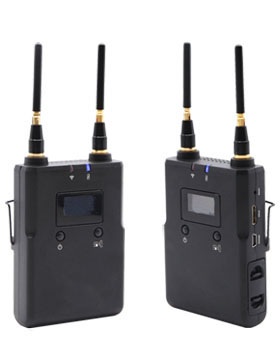

FreeStream Universal

FreeStream Universal
FreeStream Universal
Артикул 09115
Производитель: FreeStream
Цена: 55 000 руб.
Рейтинг:comment rank 5
Просмотров 56

Есть в наличии!
Итого:  Кол-во
Заказать

FreeCast universal

FreeStream is designed for live video wireless monitoring for outdoor sports,outdoor video broadcasting,outdoor photography / cinematographer.It seamlessly transmits footage captured by action cameras in big range.It is a compact and portable device with industrial dust and waterproof design,weighing only 226g.Support real-time mortoring from HDMI device and smart phone / tablet APP. With good channel selection ability and video encryption,it perfectly fits video transmission requirement of outdoor applications.





TX:CP7039 INTRODUCTION



MECHANIC INTRODUCTION

TX:CP7039

1. Antenna

2. WIFI indicator

3. Low battery indicator

4. OLED screen

5. Power Key

6.Paining Key

7. Audio in

8. Mini Hdmi in

9. 5V/2A USB power Supply Socket

10. Batter Compartment

















MECHANIC INTRODUCTION

RX:CP3039



1. Antenna

2. WIFI indicator

3. Low battery indicator

4. OLED screen

5. Power Key

6.Channel switch Paining Key

7. Reset Key

8. Mini Hdmi in

9. USB power Supply Socket

10. Batter Compartment





7039/3029

FEATURES

1. Special wireless video transmission device for action camera.

2. Adopt High-speed wireless transmission technology,it features ultra-low latency and long transmissionrange.

3. Support up to 4 smartphone clients live stream the footage simultaneously.

4. In order to make 1 transmitter connected with multi-Receiver, receiver WiFi upport both AP and STA working mode.

5. H.264 compression technology, high-quality intensive compression, State-of-art video quality.

6. Support real-time mortoring from HDMI device and smart phone / tablet Supports manual channel switching.

7. Dustpoof and waterproof, up to IP68 (transmitter only).

8. Perfect environmental daptability, operating temperature -10~50°C.

9. Compact and portable design.

10. The transmitter support Mini-USB power supply.







Application









TX:7039



TX:CP7039 Installation

1. Remove the side cover of the Gopro Hero 5,then install the side cover with screw holes which provided with this product.

2. The side cover with screw hole will be fixed after putting the Gopro Hero 5 into its frame.

3. Insert the Micro-HDMI male connector with screw lock into the Miro-HDMI female base of Gopro Hero 5. Then put the HDMI screw into the screw hole of the side cover and tighten it

4. Insert the Micro-HDMI male connector with screw lock into the Miro-HDMI female base of transmitter. then put the HDMI screw into the screw hole of side cover and tighten it.

CP03039 Installation

RX: CP3039 Installation



WIFI connection of Transmitter and receiver

1. Please press the 【power key】of the transmitter and receiver for more than 1 second, the power indicators of both the transmitter and the receiver will on, at the same time the power on logo will appear on the product screen. The transmitter system start-up time is about 20 seconds. The receiver system start-up time is about 30 seconds, please be patient.

2. After the system setup, the product will perform WiFi connection, at this time the blue WiFi indicator of the transmitter and receiver will begin to slow flash.

3. After WIFI connected, the blue WiFi indicator of the transmitter and receiver will keep on.

The receiver receives and outputs video to TV or monitor

1. Please use the attached Mini-standard HDMI cable of which one end is Mini-HDMI male and another end is standard HDMI male. Please connect the receiver to a TV or monitor with standard HDMI video input interface.

2. After the WIFI connection of the transmitter and receiver succeed, the receiver will receive and decode the video stream from the transmitter in real time, and output it to the connected TV or monitor through the HDMI line.







packing list



PACKING LIST



1、TX:CP7039:

TX:CP7039×1、Antenna×2、USB Cable(Standard USB 2.0 male & Mini USB)×1

2、RX:CP3039:

RX:CP3039×1、Antenna×2、USB Cable(Standard USB 2.0 male & Mini USB)×1
