FreeStream professional

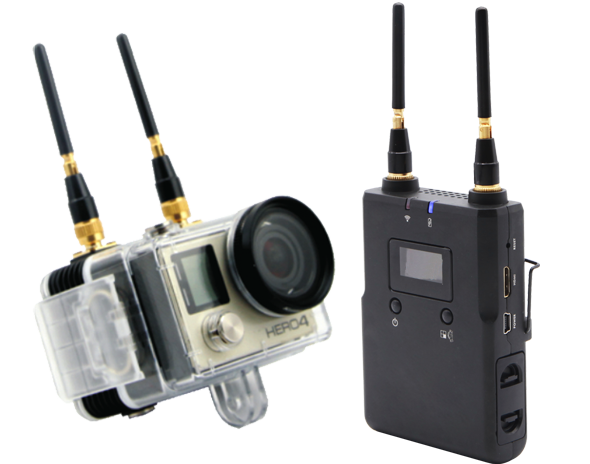

FreeStream is designed for live video wireless monitoring for outdoor sports,outdoor video broadcasting,outdoor photography / cinematographer.It seamlessly transmits footage captured by action cameras in big range.It is a compact and portable device with industrial dust and waterproof design,weighing only 226g.Support real-time mortoring from HDMI device and smart phone / tablet APP. With good channel selection ability and video encryption,it perfectly fits video transmission requirement of outdoor applications.




个人户外运动直播无线视频传输发射机接口说明

MECHANIC INTRODUCTION

TX:CP7029

1. Omnidirectional Antenna

2. Transmitter

3. Waterproof case rear plate

4. Micro HDMI in

5. WIFI Indicator

6. WIFI Indicator

7. Waterproof front plate

8. Setting Key of action camera

9. Power Key of action camera

10. Power Key of transmitter

11. Pairing Key













MECHANIC INTRODUCTION

RX:CP3039

1. Special wireless video transmission device for action camera.

2. Adopt High-speed wireless transmission technology,it features ultra-low latency and long transmissionrange.

3. Support up to 4 smartphone clients live stream the footage simultaneously.

4. In order to make 1 transmitter connected with multi-Receiver, receiver WiFi upport both AP and STA working mode.

5. H.264 compression technology, high-quality intensive compression, State-of-art video quality.

6. Support real-time mortoring from HDMI device and smart phone / tablet Supports manual channel switching.

7. Dustpoof and waterproof, up to IP68 (transmitter only).

8. Perfect environmental daptability, operating temperature -10~50°C.

9. Compact and portable design.

10. The transmitter support Mini-USB power supply.



小型户外运动直播无线视频传输产品7029/3029

FEATURES

1. Special wireless video transmission device for action camera.

2. Adopt High-speed wireless transmission technology,it features ultra-low latency and long transmissionrange.

3. Support up to 4 smartphone clients live stream the footage simultaneously.

4. In order to make 1 transmitter connected with multi-Receiver, receiver WiFi upport both AP and STA working mode.

5. H.264 compression technology, high-quality intensive compression, State-of-art video quality.

6. Support real-time mortoring from HDMI device and smart phone / tablet Supports manual channel switching.

7. Dustpoof and waterproof, up to IP68 (transmitter only).

8. Perfect environmental daptability, operating temperature -10~50°C.

9. Compact and portable design.

10. The transmitter support Mini-USB power supply.



Application



小型运动直播无线视频传输产品应用







TX:CP7029 Installation

1. Mount action camera into the front part of transmitter.Connect camera interface to transmitter HDMI socket by HDMI cable.

2. Insert lithium battery into the battery bay of transmitter.(Special notice: ansmitter doesn't come with lithium battery-extended battery, Recommend users to buy lithium batteries.

3. Mount the antenna on the top of transmitter (as picture shows).

4. Cover waterproof rear plate to the rear side of transmitter.

5. Cover waterproof front plate to the front side of transmitter.

6. Lock up the left and right buckle.

7. Fix the ready transmitter to your desired place by action camera bracket.

8. Power on action camera.

9. Power on transmitter.



Receiver CP3039 Installation



WIFI connection of Transmitter and receiver

1. Please press the 【power key】of the transmitter and receiver for more than 1 second, the power indicators of both the transmitter and the receiver will on, at the same time the power on logo will appear on the product screen. The transmitter system start-up time is about 20 seconds. The receiver system start-up time is about 30 seconds, please be patient.

2. After the system setup, the product will perform WiFi connection, at this time the blue WiFi indicator of the transmitter and receiver will begin to slow flash.

3. After WIFI connected, the blue WiFi indicator of the transmitter and receiver will keep on.

The receiver receives and outputs video to TV or monitor

1. Please use the attached Mini-standard HDMI cable of which one end is Mini-HDMI male and another end is standard HDMI male. Please connect the receiver to a TV or monitor with standard HDMI video input interface.

2. After the WIFI connection of the transmitter and receiver succeed, the receiver will receive and decode the video stream from the transmitter in real time, and output it to the connected TV or monitor through the HDMI line.







小型运动直播无线视频传输产品装箱单



PACKING LIST



1、TX:CP7029:

TX:CP7029×1、Waterproof Case x1、Antenna×2、MICRO HDMI Connector x 2

2、RX:CP3039:

RX:CP3039×1、Antenna×2、USB Cable(Standard USB 2.0 male & Mini USB)×1
