| Image Sensor |
1/2.8″ Exmor CMOS, 2.14MP |
| HD Signal Format |
1080p/60, 1080p/50, 1080p/30, 1080p/25, 1080i/60, 1080i/50, 720p/60, 720p/50, 720p/30, 720p/25 |
| Focal |
f=4.7 — 94.0mm |
| Iris |
F=1.6 — F3.5 |
| Optical Zoom |
20X |
| Digital Zoom |
12X |
| Min. Illumination |
0.5Lux) |
| WDR |
Yes |
| Field of View |
59.5° — 2.9° |
| Focus |
Auto, Manual, One Push |
| Shutter Speed |
1/1~1/10,000s |
| AGC |
Auto / Manual |
| White Balance |
Auto, Indoor, Outdoor, One Push, Manual, Auto Track |
| AE Control |
Auto, Manual, Shutter Priority, Iris Priority |
| BLC |
Yes |
| S/N Radio |
≥50dB |
| NoiseReduction |
2D / 3D |
| Preset Number |
256 |
| OSD |
Yes |
| Image Flip |
Yes |
Network
|
| Max. Image Size |
1920 x 1080@60fps |
| Video Compression |
H.265, H.264 |
| Audio Compression |
AAC |
| Dual Stream |
Support |
| Protocol |
HTTP / RTP / TCP / UDP / ONVIF / RTSP / RTMP |
| Simultaneous Users |
Up to 10 Users |

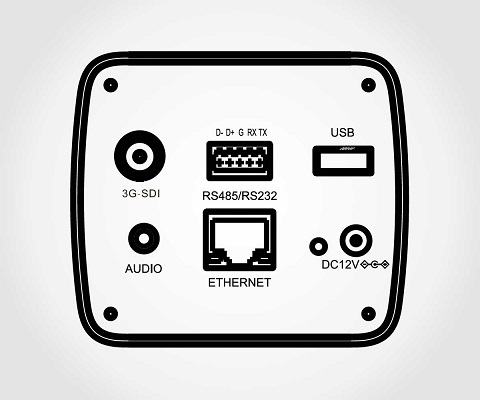

Interface
|
| Ethernet |
RJ45, 100M |
| Video Output |
3G-SDI |
| Control Interface |
RS485, RS232 |
General
|
| Control Protocol |
VISCA, PELCO-D, PELCO-P |
| Address |
1~7(VISCA), 0~255(PELCO-D / PELCO-P) |
| Power Supply |
DC12V |
| Power Consumption |
<15W |
| Work Temperature |
0°C ~ +40°C |
| Storage Temperature |
-20°C ~ +60°C |

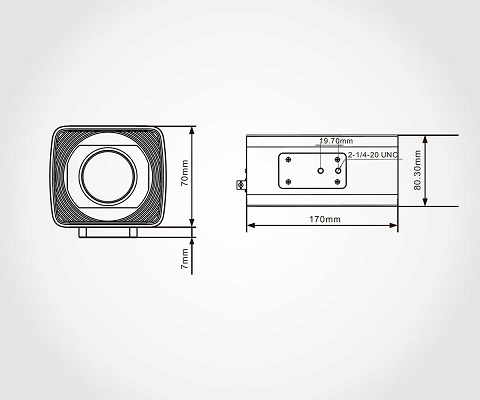

| Dimension |
170mm x 80mm x 70mm |
| Net Weight |
0.83KG |
| Body Color |
Grey |
