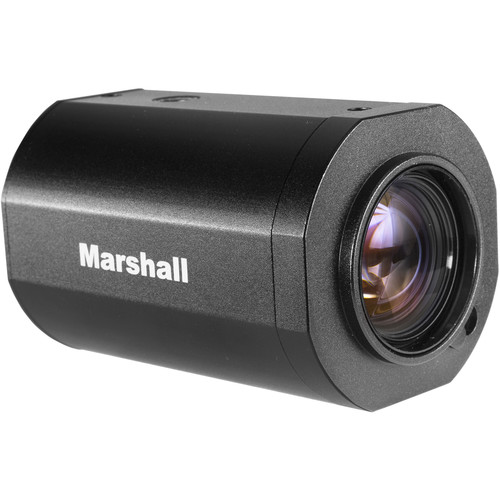

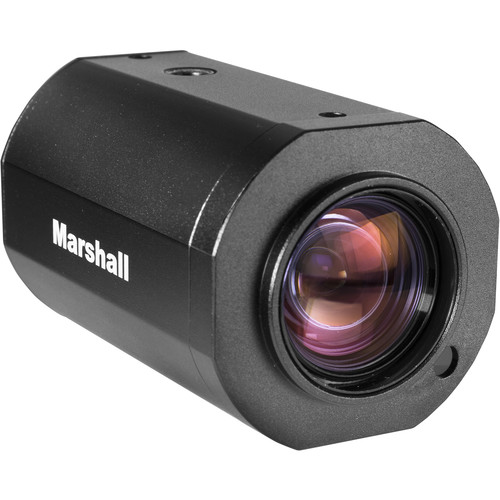

Видеокамера Marshall CV350-10XB

Видеокамера Marshall CV350-10XB

Артикул 12802
Производитель: Marshall Electronics
Рейтинг:comment rank 5
Просмотров 218
Официальная гарантия

Только под заказ!
Звоните!!!

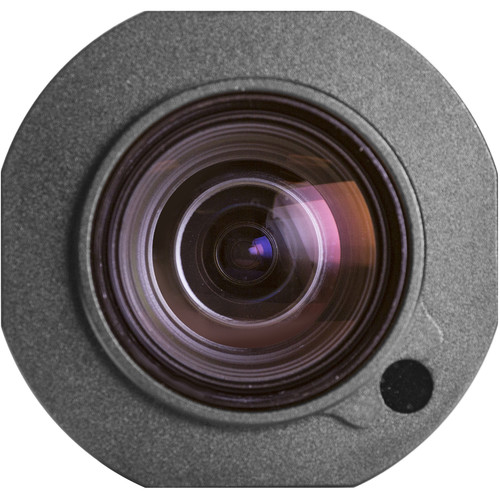

Компактная камера с 10X оптическим зум объективом (4~20мм)

  • Zoom 60/50/30/25fps
  • Высокоточный (AF) автофокус

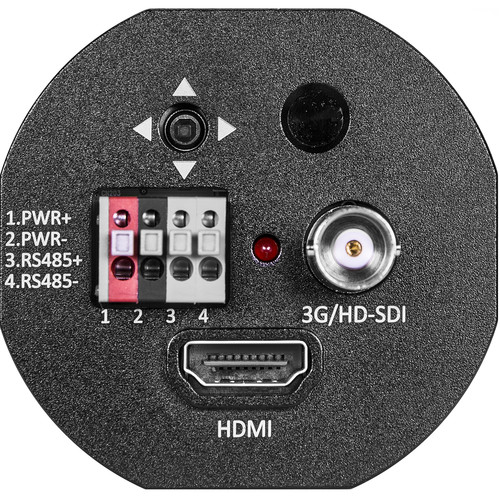

  • HDMI и HDSDI выходы
  • Размеры: 58x60x81мм
Imaging Sensor Image Sensor 1/3” Progressive 2.1 Megapixel CMOS
Scanning System 16:9 Progressive
Sync. System Internal
Effective Pixel 1920(H) x 1080(V)
Min. Illumination 0.2Lux (Day), 0.1Lux (Night), 0.005Lux(DSS on)
Horizontal Resolution 1000TVL
Optics Lens 10x Optical Zoom, f=4.7~47mm, F1.6 ~ F3.0
Zoom 10x optical zoom / 12x digital zoom
Focus Near/Far, Auto/Manual/One Push
Angle of View (H) 57.7 degrees (WIDE), 6.4 degrees (TELE)
Functions Back Light Compensation WDR/BLC, HLC (High Light compensation)
Exposure Auto / Manual
White Balance Auto (3,000°K~8,000°K) / ATW (1,900°K~11,000°K) / Manual
Day & Night System AGC / TDN (ICR)
Electronic Shutter NTSC: 1/30~1/30000, PAL: 1/25~1/30000, DSS( ~ 1/1sec)
Functions White Balance, Privacy Mask, Image Mirror, 3DNR, Flicker-less, Sharpness, Defog, Digital Image stabilizer, Exposure, Freeze, B&W, Black Level, WDR
Video Outputs Digital Output (LVDS) 1920x1080p@25,30,50,60
1920x1080i@50,60
1280x720p@25,30,50,60
HDSDI Output SMPTE 292M(1.485Gbps):
1080p@25,30 1080i@50,60
720p@25,30,50,60
3GSDI Output SMPTE 424M(2.97Gbps): 1080p@50,60
800mVp-p, 75Ώ, unbalanced generator (single-ended)
Control Interface UART(5V level) SONY-VISCA protocol
8bits data, 1 stop bit, no parity, 2400~115200bps
General Operation Temperature -20°C ~ 60°C
Power Input 12VDC (7V to 15VDC)
Power consumption Max 6W (4.8W Lens inactive, 5.5W Lens active)
Mass Approx. 375g
Dimensions 95.0 x 60.5 x 58mm (3.74″ x 2.38″ x 2.28″)
