Каталог > Монтажное оборудование > Конвертеры видеосигналов > Kiloview > Kiloview MS4 Audio and Video Collaboration System Многофункциональный видео конвертер
Конвертеры видеосигналов Kiloview MS4 Audio and Video Collaboration System Многофункциональный видео конвертер

Конвертеры видеосигналов Kiloview MS4 Audio and Video Collaboration System Многофункциональный видео конвертер

Артикул 12929
Производитель: Kiloview
Цена: 251 917 руб.
Рейтинг:comment rank 5
Просмотров 1025
Официальная гарантия

Только под заказ!
Итого:  Кол-во
Заказать



Power Your Communication

This system consists of two or more embedded terminals. Through simple installation and network building (auto-discovery between terminals), it can realize such business functions as multi-party audio and video collaboration, recording, watermark overlay and live streaming without a Micro Control Unit (MCU) in the multi-screen split mode. It is widely applied to medical teaching, telemedical, remote learning, video conference, interactive program production and other multi-party audio and video collaboration scenarios.

Medical Training

kiloview-product-application-Video-Conference

Remote Conference

Telemedicine

NDI节目制作

TV programming

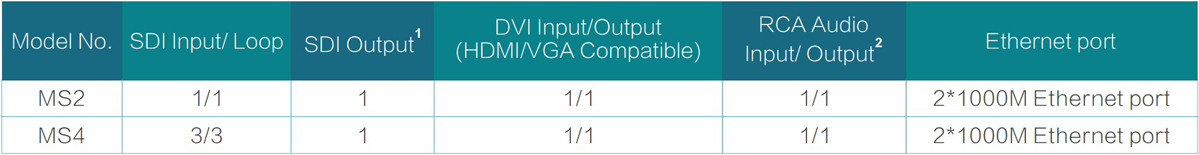

There are two types of terminal devices: MS2 and MS4. MS2 supports 2CH physical audio& video inputs and outputs; MS4 supports 4CH physical audio& video inputs and 2CH physical audio and video outputs (interface customization available).



Feature 1: SDI and DVI interface output the same or different contents.

Feature 2: RCA audio is freely selected and embedded into any physical input interface.

Multiple Options and Functions

All terminals support local audio and video (auto access, see Feature 3), remote terminal audio and video (auto-discovery, see Feature 4) and other IP streams access such as UDP, RTMP, RTSP, RTP, HLS, HTTP (manual adding). It supports up to 32CH video streams. 9CH videos of them are switched and displayed arbitrarily (see Feature 5), and all audios enable self-defined usage including on/off/mixed, to realize audio and video interaction among different terminals.

Feature 3: Cropping, rotating(portrait), color adjustment and Image noise reduction for local video.

Feature 4: Auto discovery among local network terminals while under Internet it is performed through Kiloview integrated management platform.

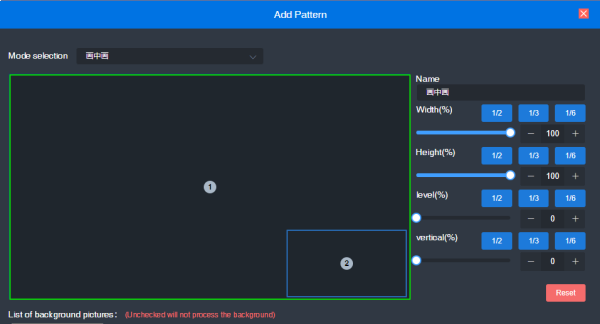

Feature 5: User-defined display with window numbers, position and size within 9 screens. Pop-up play supported in full-screen mode.

Live Streaming and other Streaming Service

Multi-screen session video with the mixed audio can be displayed on the screen, and RTSP/RTMP streaming services also available (see Feature 6).

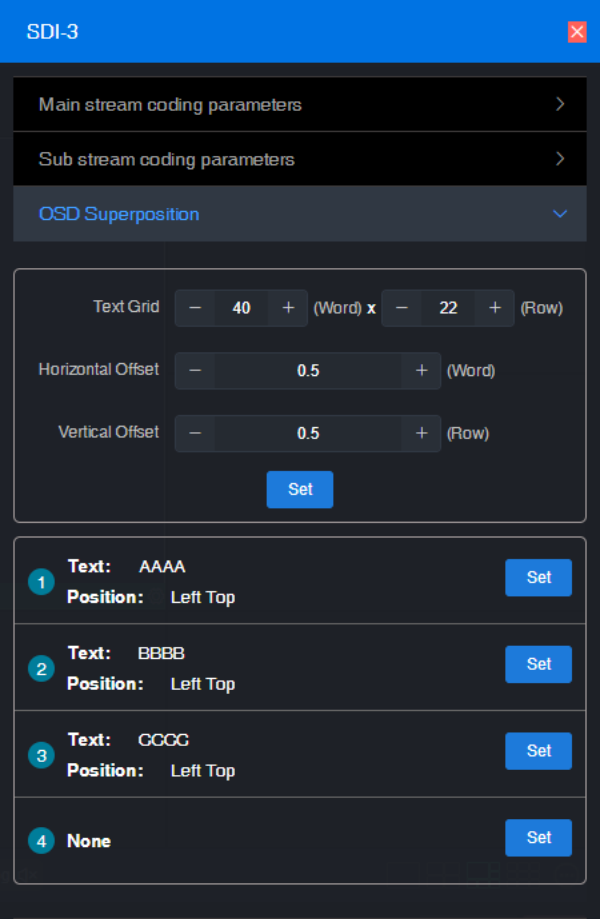

Session image can overlay Logo/background/image/text and custom window border display available.

Feature 6: IP input or output streams from all terminals can be customized in special protocols including SIP/NDI|HX.



Recording

USB expansion disk, recording of the local input video and two physical output videos (see feature 7), online playback and download of recording files.
Built-in dual 2.5 inch SATA hot-plug disk port, disk replacing during recording. NAS storage available for customization.

Feature 7: Custom for video recording of any participant or third-party access.

More Highlights





Cost-effective: It can be realized without MCU, which is convenient for deployment. Multi-party audio and video interaction without MCU and convenient deployment.



Stable and reliable: Consist of multi-embedded hardware, ensuring long-time stable working.



Powerful functions: Numbers of video accesses with the various function of session live streaming. Full network protocols supported and many extensible functions.





Easy operation: Auto-discovery among all terminals, easy-to-use interface, equipped with OLED display. Web page remotely operated on PC/iPad/Android Pad.

Parameters



Interfaces Model MS2 MS4
Video Input 1 CH SDI,1 CH DVI (HDMI) Input 3 CH SDI,1 CH DVI (HDMI) Input
Video Loop 1 CH SDI Loop 3 CH SDI Loop
Video Output 1 CH SDI, 1 CH DVI (HDMI)
Audio Input 1 CH Stereo RCA Input/USB Expansion
Audio Output 1 CH Stereo RCA Output/USB Expansion
Ethernet 2 * 1000Mbps
USB Interface 1 * USB 2.0 TYPE-A
Disk Recoding Slot 2 * 2.5-inch disk (Customized)
HMI (Human Machine Interaction) WEB UI or Customized OLED Display
Power Supply DC 12V 3A (with Power Switch)
SDI SDI Signal HD-SDI(1.485Gbps)；3G-SDI(2.97Gbps)
SDI Resolution 1080p50/59.94/60；1080p23.98/24/25/29.97/30；1080i50/59.94/60
720p23.98/24/25/29.97/30；720p50/59.94/60
HDMI/DVI Standard HDMI 1.4/DVI 1.0
Video Formats 1080p23.98/24/25/29.97/30, 1080p50/59.94/60, 1080i50/59.94/60
720p/30/50/59.94/60 and other resolutions not over 1920x1200
Encoding Video Encoding Algorithm H.264/AVC High Profile(Up to level 5.1)，Main Profile and Baseline Compatible
Audio Encoding Algorithm AAC, G.711
Video Encoding Bitrate 256Kbps - 25Mbps Adjustable
Audio Encoding Bitrate AAC: 32Kbps - 512Kbps; G.711: 64Kbps
IP Stream Input SRT/UDP/RTMP/RTSP/RTP/HLS/HTTP
IP Stream Output SRT/RTSP/RTMP,custom for NDI|HX and SIP/HLS/HTTP/TS over UDP
Multi-picture Splitting Self-defined Splitting Within 9 Images and Supports Image-in-image
Working Environment Power Supply 12V DC
Working Temperature -20℃ ~ 50℃
Working Temperature 20 - 90%RH
Power Consumption 30W Max
