Yuan SC400N4 SDI

Model Name :
SC400N4 SDI
Max. Input Resolution :
1920×1080p@60/50fps
Video Input :
4×SDI
Dimension :

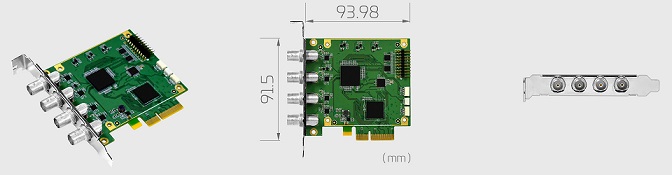

93.98×91.5 ( mm )
PCIe Full Height
Interface :
PCIe×4 ( Gen2 )
Feature :
Multi Instances
Multi Devices

Video Input Detail :
3G-SDI
Video Output :
N/A
Color Format :
Capture/Preview :
4:4:4 8Bit RGB24
4:4:4 8Bit RGB32
4:2:2 8Bit YUY2
4:2:0 8Bit YV12, NV12
4:2:0 10Bit P010
Build-in Hardware Encode :
N/A
Video Processing :
Video, Audio and VANC Capture
Video Cropping and Scaling
Auto Signal Detection
Deinterlace Engine
Multi Instances

Video Resolutions :
3G-SDI :
1920×1080p@60/50fps
HD-SDI :
1920×1080p@30/25/24fps
1920×1080i@60/50fps
1280×720p@60/50fps
SD-SDI :
720×480i@60fps
720×576i@50fps
