Model

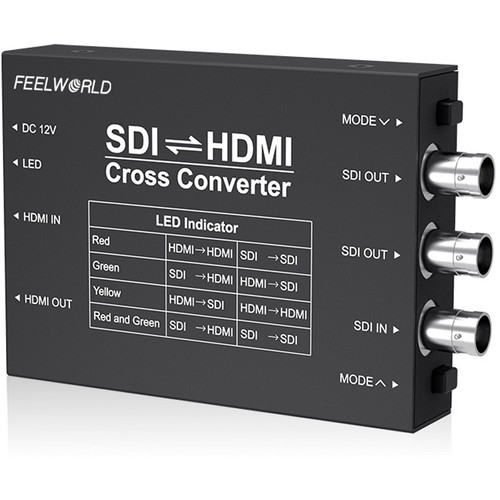

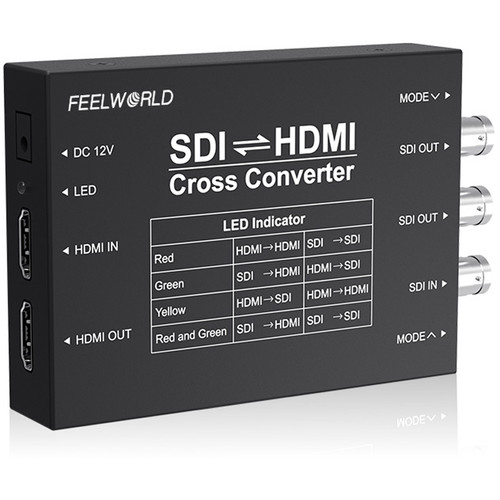

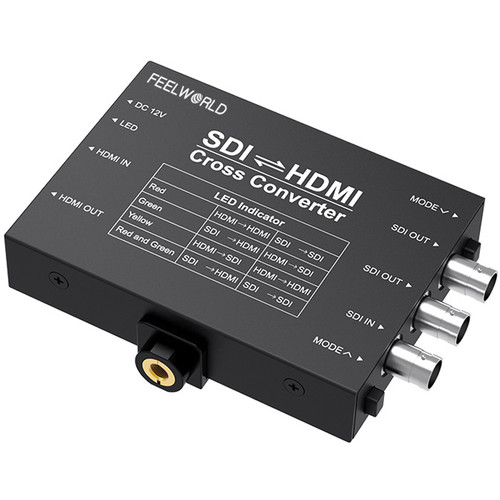

| SCH (SDI ⇌ HDMI Cross Converter) |

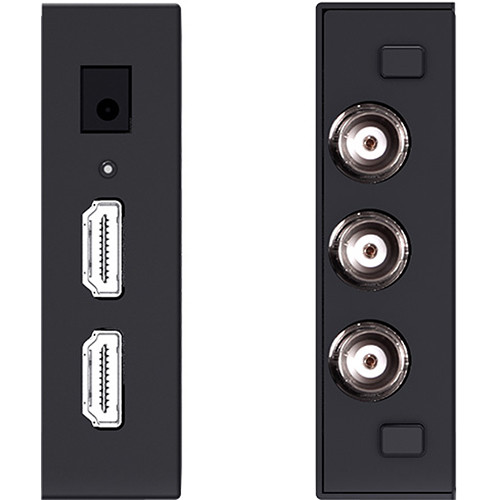

Input
| 1 X BNC | 3G/HD/SD-SDI |
| 1 X HDMI | HDMI |
Output
| 2 X BNC | 3G/HD/SD-SDI |
| 1 X HDMI | HDMI |
SDI Support Format
| 3G-SDI:1080P(60/59.94/50) |
| HD-SDI:1080P(30/29.97/25/24) |
| 1080I(60/59.94/50) |
| 1080PsF24 |
| 720P(60/59.94/50/30/25/24) |
HDMI Support Format
| 1080P(60/59.94/50/30/29.97/25/24) |
| 1080I(60/59.94/50) |
| 1080PsF24 |
| 720P(60/59.94/50/30/25/24) |
General
| Power Consumption | ≤4.2W |
| Input Voltage | DC 5～24V |
| Connector | DC 12V |

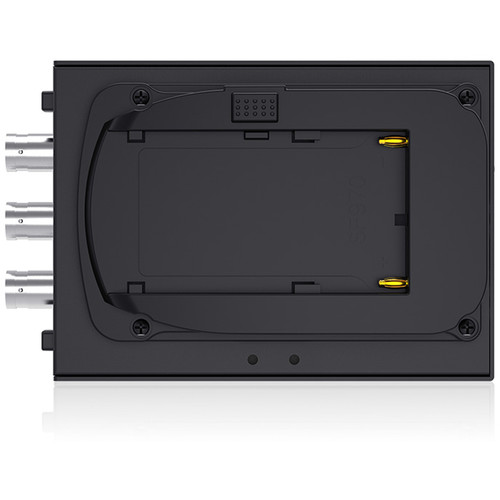

| Battery Plate | F970 (Standard); D28S, E6 (Optional) |
| WorkingTemperature | -20°C~60°C |
| Storage Temperature | -30°C~70°C |
| Unit Size (mm) | 108.5L×78.8H×23D |
| Unit Weight | 230g/ 260g (With F970 Plate) |
Dimensions (Unit: mm)
