| Max. Input Resolution |
7680×4320@60/50fps |
| Video Input |
1×HDMI2.1 |

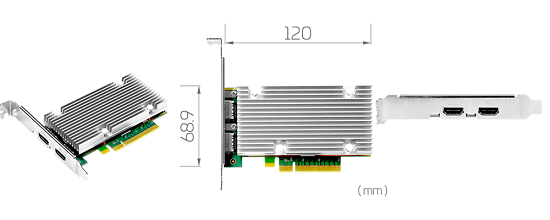

| Dimension |
120×68.9 ( mm )
PCIe Low Profile |
| Interface |
PCIe×8 ( Gen3 ) |
| Feature |
Multi Instances
Multi Devices |
| Video Input Detail |
HDMI2.1 |
| Video Output |
HDMI2.1
( Loop-Through ) |
| Color Format |
Capture/Preview :
4:4:4 8Bit RGB24
4:4:4 8Bit RGB32
4:2:2 8Bit YUY2
4:2:0 8Bit YV12, NV12
4:2:0 10Bit P010 |
| Build-in Hardware Encode |
N/A |
| Video Processing |
Video Cropping and Scaling
Auto Signal Detection
Deinterlace Engine
Multi Instances |
| Video Resolutions |
HDMI2.1
7680×4320@60/50/30/25/24fps
4096×2160@120/60/50/30/25/24fps
3840×2160@120/60/50/30/25/24fps
2560×1440p@144fps
1920×1080p@240/144/120/100fps
1920×1080p@60/50fps
1920×1080p@30/25/24fps
1920×1080i@60/50fps
1280×720p@60/50fps
1280×1024p@60fps
1280×960p@60fps
1024×768p@60fps
800×600p@60fps
640×480p@60fps
720×480p@60fps
720×576p@50fps
720×480i@60fps
720×576i@50fps
※More resolution supported by SDK |
| Audio Input |
1×Stereo Embedded Audio |
| Audio Format |
Stereo / 16-bit / 32000 ~ 48000Hz |
| Supported Software Applications |
vMix
OBS
ZOOM
Skype
Teams
Discord
Slack
Cisco Webex
GoToMeeting
※DirectShow/V4L2 Compatable Software Supported |
| SDK |
Windows and Linux SDK |
| OS Support |
Windows 7/Windows 8/Windows 8.1/Windows 10
Linux 4.8 or Higher ( 32-bit and 64-bit )
Linux ARM
nVIDIA Jetson TX2, NANO, AGX Xavier, Xavier NX |
|
|
