SC710N1-L 12G-SDI+HDMI2.0

1 CH 4K60 12G-SDI/HDMI2.0



Max. Input Resolution	4096×2160p@60/50fps
Video Input	1×12G-SDI, 1×HDMI 2.0

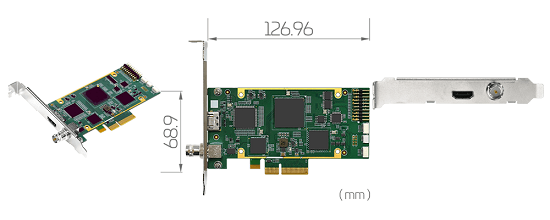

Dimension	126.96×68.9 ( mm ) PCIe Low Profile
Interface	PCIe×4 ( Gen2 )
Feature	HDR10/HLG HDR Tone Mapping HDMI 1.4B 3D Multi Instances Multi Devices

Video Input Detail	Single-Link HDMI 2.0 Single-Link 12G-SDI
Video Output	N/A
Color Format	Capture/Preview : 4:4:4 8Bit RGB24 4:4:4 8Bit RGB32 4:2:2 8Bit YUY2 4:2:0 8Bit YV12, NV12 4:2:0 10Bit P010
Build-in Hardware Encode	N/A
Video Processing	Video, Audio and VANC Capture Video Cropping and Scaling Auto Signal Detection Deinterlace Engine Multi Instances
Video Resolutions	12G-SDI : 4096×2160@60/50fps 3840×2160@60/50fps 6G-SDI : 4096×2160@30/25/24fps 3840×2160@30/25/24fps 3G-SDI : 1920×1080p@60/50fps HD-SDI : 1920×1080p@30/25/24fps 1920×1080i@60/50fps 1280×720p@60/50fps SD-SDI : 720×480i@60fps 720×576i@50fps HDMI2.0 : 4096×2160@60/50/30/25/24fps 3840×2160@60/50/30/25/24fps 2560×1440p@144fps 1920×1080p@240/144/120/100fps 1920×1080p@60/50fps 1920×1080p@30/25/24fps 1920×1080i@60/50fps 1280×720p@60/50fps 1280×1024p@60fps 1280×960p@60fps 1024×768p@60fps 800×600p@60fps 640×480p@60fps 720×480p@60fps 720×576p@50fps 720×480i@60fps 720×576i@50fps ※More resolution supported by SDK

Audio Input	2×Stereo Embedded Audio (12G-SDI+HDMI2.0)
Audio Format	Stereo / 16-bit / 32000 ~ 48000Hz

GPIO	16
WatchDog	N/A

Supported Software Applications	vMix OBS ZOOM Skype Teams Discord Slack Cisco Webex GoToMeeting ※DirectShow/V4L2 Compatable Software Supported
SDK	Windows and Linux SDK
OS Support	Windows 7/Windows 8/Windows 8.1/Windows 10 Linux 4.8 or Higher ( 32-bit and 64-bit ) Linux ARM nVIDIA Jetson TX2, NANO, AGX Xavier, Xavier NX
