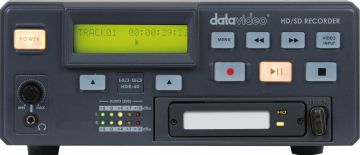

Datavideo HDR-60

Datavideo HDR-60

Артикул 02592
Производитель: Datavideo
Цена: 245 234 руб.
Рейтинг:comment rank 5
Просмотров 4552
Официальная гарантия

Только под заказ!
Бесплатная доставка по Москве в пределах МКАД!
Итого:  Кол-во
Заказать

HD/SD Digital Video Recorder

Hard drive based portable video recorder



The HDR-60 is a portable video recorder with removable hard drive enclosure, designed for studio desktop applications.

Supports multiple input and output configurations



1 x HD/SD-SDI input, output and loop through with embedded audio; 1 x HDMI output with embedded audio.



Convenient for post-production or play out



Record with MPEG-2 4:2:2 NTFS file system in MOV or MXF formats on SSD drives up to 125Mbps.



Various built-in functions



Genlock, black burst and time code supported

Specifications


HDR-60 HD/SD Digital Video Recorder
Video Standard

HD & SD
Video Format

1080p 23.97/24Hz
1080i 50/59.94/60Hz
720p 50/59.94/60Hz
576i 50Hz, 480i 59.94Hz
Supported Video Input Signal

1x SDI
Monitoring / Playback Output

1x SDI (Input Loop Thru)
1x HDMI, 1x SDI (Out)
Analog Audio Input / Output

2x Balanced mini XLR (Stereo pair)
Embedded Audio

Both In & Out (8-CH on SDI/HDMI)
Storage Medium

2.5" Hard Drive / SSD*, Max capacity 1TB
Estimated Record Time (min per 10GB)

SD: 19 (50Mbps) ~ 70 (8Mbps)
HD: 8 (125Mbps) ~ 62 (10Mbps)
Recording Media

1x 2.5" Removable HDD/ SSD
Storage File System

NTFS
Recorded File Format

MXF OP1A, MOV
Video Recording Bit Rate / Color Sampling

MPEG2 Long GOP HD:
 1. 10/ 25Mbps 4:2:0 1440x1080/1280x720,
 2. 35/ 50/ 65/ 120Mbps 4:2:2 1920x1080/1280x720,
MPEG2 Long GOP SD:
 1. 8Mbps 4:2:0 720x480/720x576 (to be F/W upgrade)
 2. 15/ 30/ 50Mbps 4:2:2 720x480/720x576
MPEG2 I-Frame Only HD:
 1. 80/ 100/ 125Mbps 4:2:2 1920x1080/1280x720
MPEG2 I-Frame Only SD:
 1. 25/ 50Mbps 4:2:2 720x480/720x576
Audio Recording Format

Uncompressed PCM
Sampling rate 48KHz 24bit
Time Code In / Out

Yes
External Sync / Genlock

Black Burst & Tri-level with loop thru
External Control

RS-232/422 (Dsub 9pin), GPI (min XLR)
Power Failure Protection

Content saved up to last second before power failure
Chassis

Desktop
Dimension (LxWxH)

210 x 254 x 96 mm
Weight

2.7 kg
Operating Temp. Range

0~40 °C
Power

DC 12V, 2A
What's in the Box

1 x HDR-60 product
1 x AD Switch DC 12V
1 x USB Cable (Y type)
2 x Mini XLR F to M XLR cable
2 x Mini XLR F to F XLR cable
2 x 2.5" Removable HDD Enclosure (HDD Not Included)
10 x M3 X 4 m/m Screws
2 x 2.0 X 6 m/m Screws
2 x HD Label
4 x Label
1 x Thank You Card
Approved Drives

Crucial MX220 (250GB)
Hitachi 7K320-320 (320GB)
Intel 330 Series (120GB)
Intel 520 Series (120GB)
Kingston Hyper X (240GB)
Kingston Hyper X (128GB)
Samsung 840 EVO (1TB)
Samsung 840 PRO (128GB)
Samsung 850 PRO (256GB)
Sandisk Extreme (120GB)
Sandisk Extreme (240GB)
Sandisk Extreme II (120GB)
Sandisk Extreme II (240GB)
Sandisk X110
Sandisk X300s (512GB)
Silicon Power V30 (120GB)
Transcend SSD320 (120GB)
Transcend SSD370 (512G)
WD WD3200BEKT (320G)
WD WD5000BEKT (500GB)
WD WD5000BPKT (500GB)
WD WD3200LPLX (320GB)
WD WD5000LPLX (500GB)
WD WD7500BPKT (750GB)
