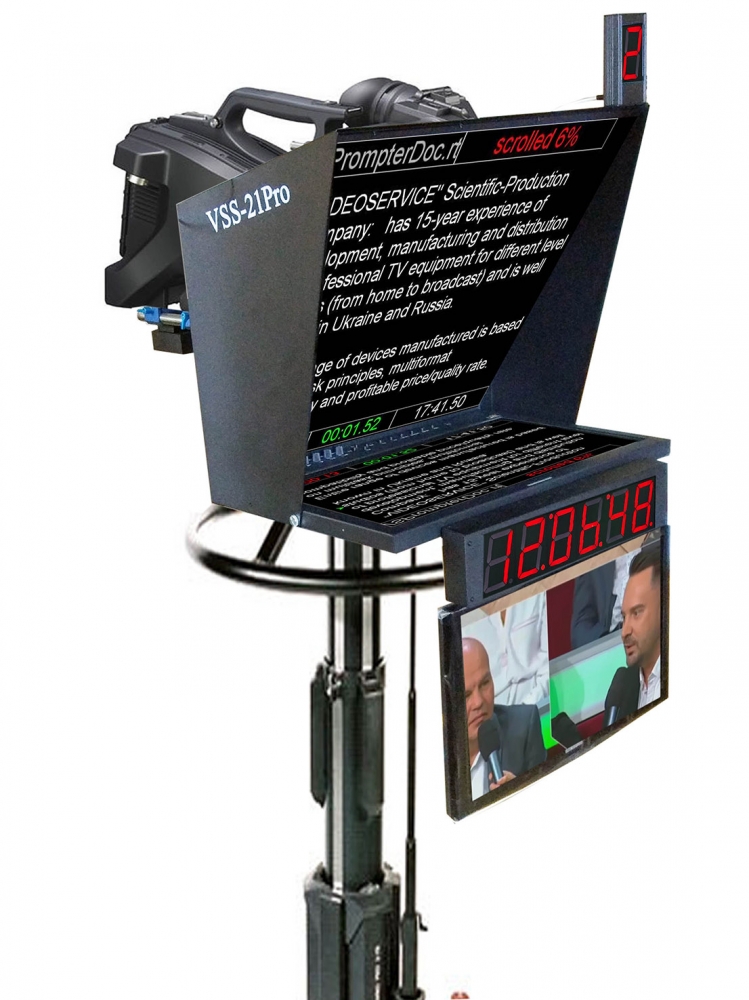

Professional studio teleprompter VSS-21P is constructed under the traditional scheme and intended for a projection of the readable text to the translucent glass located in front of the camera lens. The text are completely reflected in the direction of the announcer, without falling into formed by the camera the video signal. Teleprompter provides video shootings with any types of videocameras.

 Teleprompter uses a special mirror (Broadcast Quality Ultraclear Beamsplitter) with the main, semi-transparent layer of amalgam 70/30(transparency/reflectance) and an additional anti-reflection (AR) coating, minimizing unwanted reflections from inner side of the mirror to prevent ghosting.

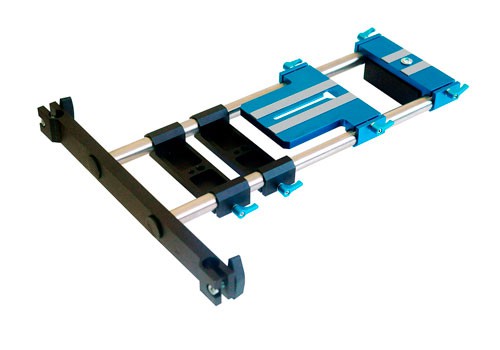

 The basis of this design of teleprompter is Base plate platform made of polished stainless steel tubes, where are four movable mounting plates and mounting hardware for front part of the prompter (tube with a mirror and a monitor). The upper mounting plates is designed to mount the camcorder by two points. The lower plates provides mount on a pedestal or tripod by two points also. One of the plates - for set the counterweight for balancing system when the small camera using.

  The base plate provides free horizontal movement of the mouting plates, fixing them in the desired position, and provides vertical movement up/down of the tubes with the mirror and the monitor relative to a fixed base plate with camera and fixing in position that allows to adapt the design to use camera of any size.

  There is ability to change the angle of the mirror up to 55 degrees, it is allows you to use the camera with a wide angle lens.

  Loose(non-rigid) fixing the mirror inside the hood makes it easy to remove it for replace, to clean and to safe transportation.



The Main Features:

  • Increased rigidity
  • Ability to use a lens servo control
  • Broadcast quality beamsplitter 70/30 with AR coating
  • The ability to use  any size cameras
  • Ability to use wide-angle lenses
  • The ability to easily remove the mirror
  • Versatile mounting elements
  • Sunlight readable monitor 1000nits, image fliper, CV,HDMI inputs
  • Professional software

Options:

  • Tally light, normal or sevensegments.
  • Talent Feedback Monitor (from 10’ to 40’)
  • Spare beamsplitter
  • Foot and Hand pedals
  • Time Code Display
  • Contour Disign Shuttlexpress
  • VGA cable extender 20m
  • Extender cable for pedals
  • Wireless Presenter
Specifications:
Manufacturer: Videosolutions Group
Monitor:
Size: 21,5 in
Mirror:
Beam splitter: 30/70, ultra clear, anti-reflection coating
Size: 450x480 mm (17,7x18,9 in)
Construction:
Gross/net Weight: 18/10,5 kg

In the box:

  • Teleprompter hood with a beam splitter 70/30 with AR coating 480x450mm,
  • Base plate with mounting brackets,
  • 21,5’ LCD monitor with standard cables,
  • Control foot-pedal,
  • Prompting software VSPrompter3,
  • Kit of screws with different sizes for mounting
