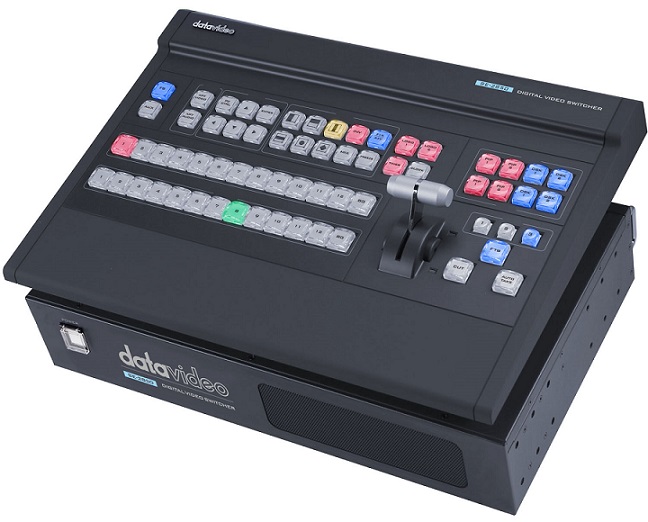

Datavideo SE-2850-8

Datavideo SE-2850-8

Артикул 09125
Производитель: Datavideo
Цена: 808 717 руб.
Рейтинг:comment rank 5
Просмотров 2682
Официальная гарантия

Только под заказ!
Бесплатная доставка по Москве в пределах МКАД!
Итого:  Кол-во
Заказать

HD/SD SDI видеомикшер с 8-ю универсальными HD/SD входами /выходами и мощными видео эффектами. Входы 1080i/P & 720P, 1080i выход. Кол-во входов - 8 может быть следующее кол-во входов: 8 HD SDI,8 SD SDI, 4 CVBS, 2 HDMI. Качество цифрового сигнала 4:2:2 (10 бит). Поддержка HD и SD. Встроенный Datavideo TC-200 CG интерфейс, поддержка наложения титров CG от компьютера. Входные сигналы могут быть как высокой, так и стандартной четкости. Многоэкранные выходы HDMI на один или на два монитора с 1920 х 1080i разрешением. 2 канала DSK для наложения титров и графики. HD и SD выход одновременно. С панелью управления в комплекте.

HD/SD 8/12-Channel Digital Video Switcher

8 inputs standard. Upgradable to 12 inputs.



The SE-2850 is the only rack-mounted, 8-input switcher that can be upgraded to 12 inputs to support even larger productions. (SDI and HDMI inputs)



Support for various input resolutions simultaneously



Connect cameras, computers, and other devices with different video resolutions. Thanks to its built-in video scaler, the SE-2850 will scale all the inputs for the proper working environment.



Perfect lip sync



The SE-2850's included audio-delay feature ensures that you'll be able to keep your audio and video perfectly in sync with one another. This means zero lip sync issues for your professional production.

Assignable Crosspoints



The SE-2850's inputs can be reassigned, giving you more flexibility while organizing the multi-view interface.

Included CG Title Creator



The SE-2850 includes the entry-level CG-200 software for creating on-screen text and titles. (Upgradable to CG-350 for advanced features)

Supports 12 HD or SD Inputs in a variety of configurations



HD Mode: (1) 8/12 HD-SDI , (2) 6/9 HD-SDI + 2/3 HDMI
SD Mode: (1) 8/12 SD-SDI , (2) 6/9 SDI + 2/3 HDMI

Professional 10-bit processing switcher



Providing you the best and professional quality of video processing.



Real-time clock featuring HH:MM:SS on the multi-screen



Count down counter MM:SS

Specifications

SE-2850 HD/SD 8/12-Channel Digital Video Switcher
Video Standard

HD & SD

Video Input Format

1080p 25/29/30/50/59.94/60Hz
1080i 50/59.94/60Hz
720p 50/59.94/60Hz
576i 50Hz
480i 59.94Hz

Video Processing

SDI: 4:2:2
HDMI: YUV 4:2:2 10 bit, RGB 4:4:4

Input Routable / Crosspoint

All 12, repeatable

Video Input

Standard: 8x SDI, 2x HDMI
Max: 12x SDI, 3x HDMI

Mix HD & SD Source

Yes

Computer Graphic Interface

Max 3 via HDMI

Video Output

4x SDI assignable:
PGM, PVW, AUX & Clean Out
2x HDMI assignable:
PGM & multi-view

Output Resolution:
1080i 50/59.94/60Hz
1080p 25/29/30

Down-converted Output

4x SDI

Built-in Multi-view Monitoring Out

2x HDMI

Analogue Audio Input

4x Balanced XLR

Analogue Audio Output

2x Balanced XLR

Digital Embedded Audio Support

Input up to 16 channels, Output 4 channels

Audio Delay Calibration

Up to 8 frames per channel (*SDI input audio only)

A+V Switching

Yes

Title Creator

Yes, CG-200 software free download

DSK

2x DSK support Lumakey/ Linear key (Key / Fill)

Picture in Picture

2

Logo Insertion

2 (or 1 logo + 1 clock)

Still Store

12

Effects

FTB, Cut, 8 Wipe with border

Transition Preview

PiP & DSK

Sync / Reference In/Out

Built-in Genlock
Support external sync with loop thru

Tally Output

1x D-sub 25pin, dual color

PC Remote Control

Ethernet (free Window software)
RS-422/ RS-232

Special Features

4-CH SD downconvert output
Built in TC-200 CG system
Selectable SMPTE/EBU Audio level

Chassis

2 units, 2RU rack-mount mainframe

Dimension (LxWxH)

433 x 312 x 76 mm (switcher)
432 x 252 x 88 mm (main unit)

Weight

4.7 kg

Power

DC 12V, 44W

Operating Temp. Range

0~40 °C

Options

CB-46/47/60/61/62

What's in the box

1 x SE-2850 Main Unit
1 x SE-2850 Control Board
1 x AD Switch DC 12V with AC Cord
1 x DB9P TO DB9P Cable
1 x CB-41 / XLR to XLR Cable
2 x Extra button cap for wipe
12 x Screw
2 x 2U Ear Rack
1 x Thank You Card

Workflow
