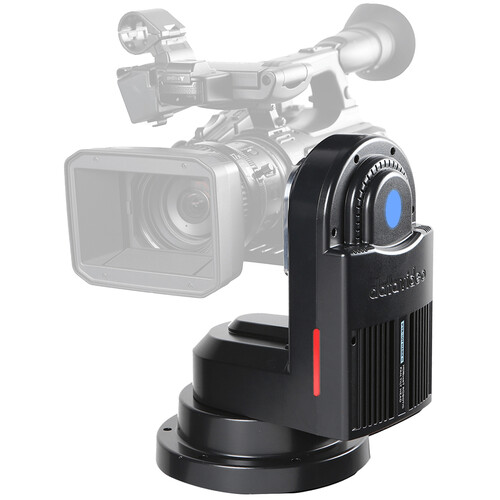

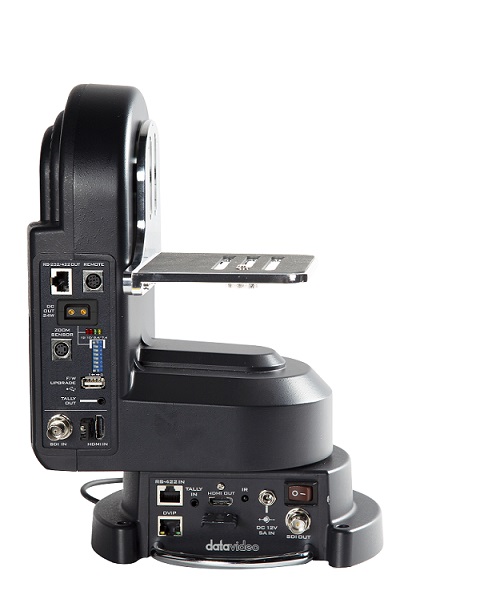

Datavideo PTR-10 MARK II

Datavideo PTR-10 MARK II

Артикул 10421
Производитель: Datavideo
Цена: 348 712 руб.
Рейтинг:comment rank 5
Просмотров 1685
Официальная гарантия

Только под заказ!
Бесплатная доставка по Москве в пределах МКАД!
Итого:  Кол-во
Заказать

HDBaseT Robotic Pan Tilt Head

Turn camcorder into PTZ

Cost-Effective

Wide Range of Compatible Cameras Supported

Light Weight, Strong, and Sturdy design

Diversified Controller Options

Built-in Tally light

D-tap connector for DC output

Multiple Signal Interface

Optional Accessories: ZEK-1 Zoom Encoder Kit

Спецификация

PTR-10 Mark II Robotic Pan Tilt Head
Video Interface

HDMI x 1
SDI x 1

Video Output

2160p 29.97/25
1080p 59.94/50
1080i 59.94/50
720p 59.94/50

Control Unit

RMC-180
RMC-300A
VISCA Protocol Controller
IP Control
IR remote

Panning / Tilting Range

Pan: 340°
Tilt: ±45°

Panning / Tilting Speed

Pan: 0.12~15° /Sec
Tilt: 0.06~10° /Sec

Preset

Pan/Tilt position 50

Control Distance

Sony VISCA
DVIP

Control Protocal

Sony VISCA
DVIP

Control Input

RS-422
DVIP

Maximum Load

4 KG Max

Control Output

RS-232
RS-422
BX-Lens
LanC

Power Requirement

DC 12V~ 18V, 3A (Without Camera)
DC 12V~ 18V, 5A (With Camera)

Power Supply

DC 12/10/8.4/7.4V, 24W Max

Operating Temp. Range

0~40 C°

Operating Humidity Range

10~80%

Storage Temp. Range

-10~60C°

Storage Humidity Range

5~80%

Weight

3.4 kg

Dimension (LxWxH)

230 x 190 x 300 mm

What's in the Box

PTR-10 Mark II Main Unit x 1
DC 12V power adaptor x 1
AC cord x 1
IR remote control x 1
DC with lock to D-Tap cable x 1
HDMI cable x 1
SDI cable x 1
Remote cable (2.5mm phone-jack to mini-din 8pin) x 1
1/4” screw (14mm) x 2
1/4” screw (10mm) x 1
1/4” to 3/8” screw adaptor x 1
PTR-10 Mark II Thank You Card x 1
